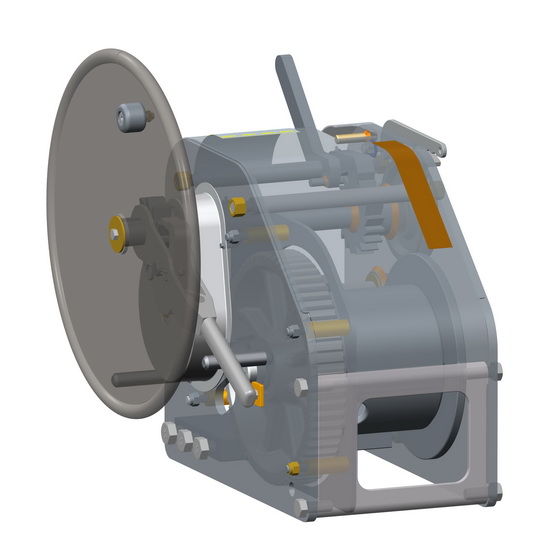

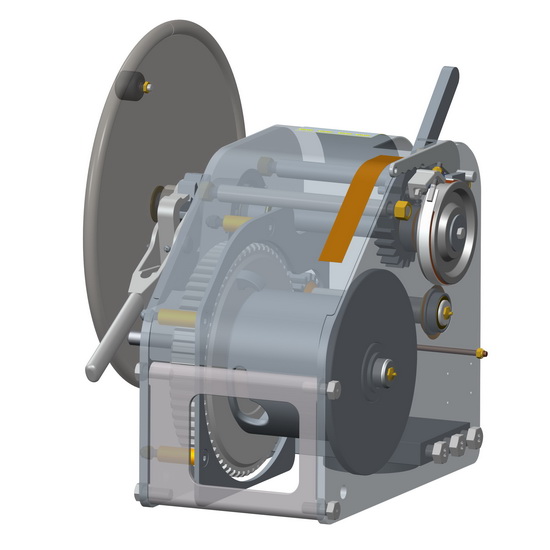

40 Ton Multiple Reduction Manual Winches

Call 1-800-455-3917 for pricing

SKU: UMC-MR-40 Category:

Description

PDF Downloads

Features

    • Large hand wheel featuring a spinner knob for quick take-up.
    • Ratchet lever arm for final tensioning.
    • Hand lever brake for controlled load release.
    • Fully enclosed gearing and drum for safe operation.
    • 10″ diameter drum for faster take-up and more wire capacity.
    • Double reduction gear design.
    • Cast steel gears coupled with heat treated steel pinion gears for ultimate strength and durability.
    • Galvanized finish for corrosion resistance.
Description
UMC’s barge connecting winches have been connecting barges all over North and South America for over 15 years. Our winches are built from the highest quality materials and designed for continued trouble free operation.
Application
Barge connecting winches are designed primarily to be used with wire rope for barge coupling. They are typically placed on the port and starboard corners of the line deck and stern of a barge.

Model Number Part Number Description Handeling Weight Total Lbs (Kgs.) Autocad PDF/DXF/XML
UMC-MR-40-S-RH 08322-122A 40 Ton Multiple Reduction Swivel Winch (Galvanized) RH 618 (280)
UMC-MR-40-S-LH 08322-122B 40 Ton Multiple Reduction Swivel Winch (Galvanized) LH 618 (280)
UMC-MR-40-WDP-RH 08322-112A 40 Ton Multiple Reduction Weld Down Winch (Galvanized) RH 677 (307)
UMC-MR-40-WDP-LH 08322-112B 40 Ton Multiple Reduction Weld Down Winch (Galvanized) LH 677 (307)
