Description
PDF Downloads
Description
UMC® offers a wide range of Kevels for any deck application. Sizes range from 12” long weighing 8lbs to 60” long weighing just under 400lbs. Our Kevels are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
UMC® offers a wide range of Kevels for any deck application. Sizes range from 12” long weighing 8lbs to 60” long weighing just under 400lbs. Our Kevels are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Kevels are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
UMC’s Kevels are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Small Kevels like the UMC-K12A are designed primarily to be used with line for checking, or mooring. They are typically placed along the gunnels of a push-boat/ tow-boat or along a dock.
Small Kevels like the UMC-K12A are designed primarily to be used with line for checking, or mooring. They are typically placed along the gunnels of a push-boat/ tow-boat or along a dock.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel
Model Number | Part Number | Description | Weight Total Lbs (Kgs.) |
---|---|---|---|

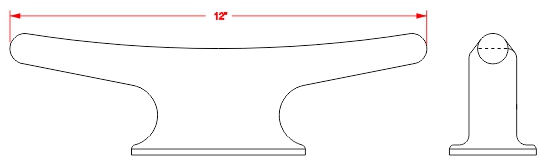

UMC-K12A | 08720-301A | 12″ Kevel Small Base | 7.6 (3.4) |
