4-Dog Oval + Raised 3-Dog Ullage

Call 1-800-455-3917 for pricing

SKU: UMC-464-5 / 144-5-3D Categories: ,

Description

PDF Downloads

Hardware

    • Tumble Bolt – Stainless Steel
    • Dog Handle – Steel with Zerk
    • Bolt 5/8-11 – Stainless Steel
    • Nut 5/8-11 – Stainless Steel
    • Gasket – Nitrile Rubber
    • All of our raised watertight hatches meet ABS (American Bureau of Shipping) requirements for design and materials.
Description
Raised watertight hatches are strong and secure enclosures designed to be easily accessed when needed. They are universally used on all types of commercial vessels from tank barges, hopper barges, box barges and push-boats to OSVs and larger commercial vessels. Their simple design and quality steel construction help them meet long range trouble-free service requirements in the harshest environments.
Feature Description
Custom coaming heights available upon request.
Other gasket material available upon request.
Various hardware options available:
– Steel, Stainless Steel, & Bronze Dog Handles (available with or without grease fittings).
– Bronze & Stainless Steel Tumble Bolts.
– Lug Bolts and nuts made from dissimilar metals to prevent galling and corrosion.
Flame screens available upon request (sold separately).
Application
Raised watertight hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting. Raised watertight hatches that feature a ullage hatch are also commonly used on tank barges where the ullage is used as a vent or an inspection port to measure or verify cargo.
Material
Steel (ASTM A36)
Painted Primer Grey

Model Number Part Number Description Clear Opening In. (mm) Weight Total Lbs (Kgs.)

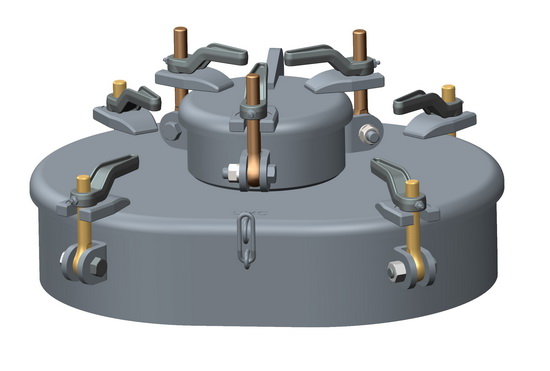

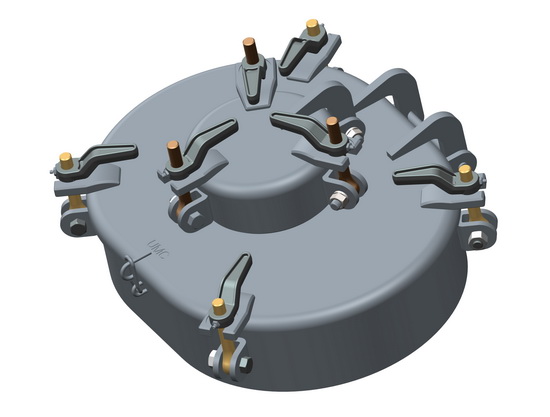

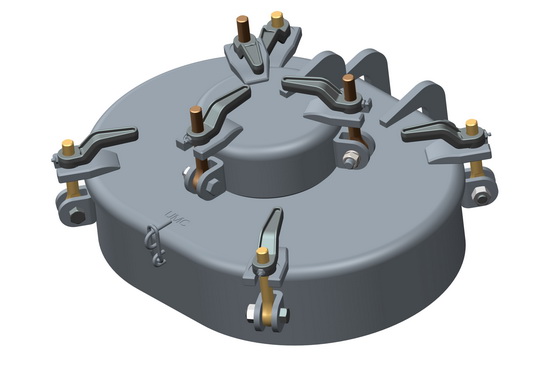

UMC-464-5 / 144-5-3D 03800-132A Raised 4 Dog 18×24 Watertight Hatch +
Raised 3 Dog 8″ Ullage & Hasp
18″ x 24″
(457 x 610)
Ullage: 7″
(178)
137
(62)
