Closed Chocks | 6″, 9″, 12″, 14″ | Cast Steel

Call 1-800-455-3917 for pricing

SKU: UMC-480, UMC-490, UMC-14 Category:

Description

Description

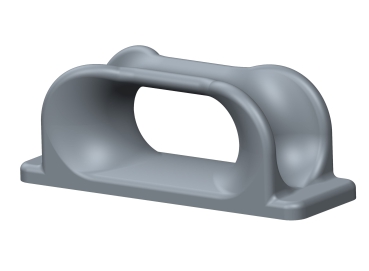

UMC offers several Closed Chocks for any deck application. Our Closed Chocks range in size from a 4 x 8 clear opening to 9.38 x 18.75. All of UMC’s Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description

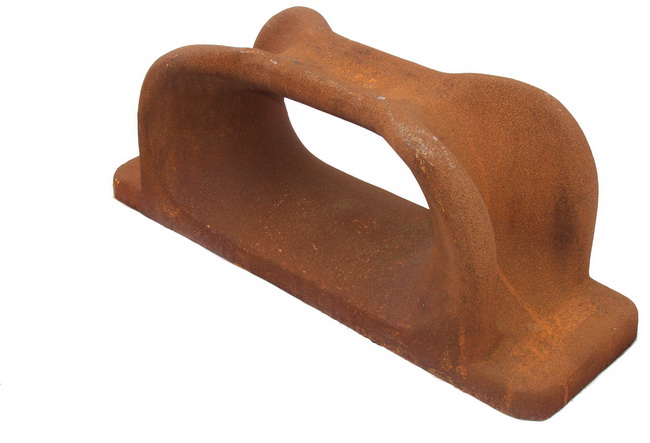

UMC’s Closed Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Closed Chocks are used for holding down line or wire by running it through the center of the chock. They secure line or wire close to the deck and eliminate the line or wire from “riding up” on a bitt.
Material
ASTM A27-70-36 Cast Steel

Model Number Part Number Description Clear Opening In. (mm) Weight Total Lbs (Kgs.)
UMC-480 04610-301A 9″ Closed Chock 6 x 12 (152 x 305) 176 (80)
UMC-490 06240-301A 12″ Closed Chock 8 x 16 (203 x 406) 455 (206)
UMC-497 06241-302A 6″ Closed Chock 4 x 8 (102 x 203) 70 (32)
UMC-14 06241-301A 14″ Closed Chock 9.38 x 18.75 (236 x 476) 725 (329)
