Features:
- T-Bolt – Stainless Steel
- Thread Block – Brass
- Strongback – Galvanized Steel
- Gasket – Nitrile Rubber
- Washer – Brass
- T-Bolt Gasket – Nitrile Rubber
- Cotter Pin – Stainless Steel
- Made from high strength 3/8” steel for better impact resistance.
- No tools required, single bolt T-Bolt for secure engagement.
- Stainless steel T-Bolt and Brass Thread block uses dissimilar metals to prevent galling and ensure trouble-free operation.
- Nitrile rubber gaskets ensure water-tight design.
- Meets ABS (American Bureau of Shipping) requirements for design and materials.
Description

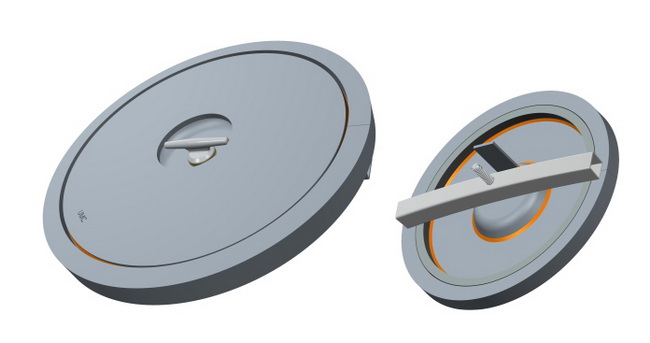

This industry standard steel enclosure features a proven strongback style design and is operated by a single T-Bolt. Its easy operation facilitates convenient use while maintaining a near flush profile.
This industry standard steel enclosure features a proven strongback style design and is operated by a single T-Bolt. Its easy operation facilitates convenient use while maintaining a near flush profile.
Application
Flush T-Bolt hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting.
Flush T-Bolt hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting.
![](https://www.umcmarine.com/wp-content/uploads/MigCat/UMC-430-18S-Dimension.jpg)
Material
Steel (ASTM A36)
Painted Primer Grey or Galvanized
Steel (ASTM A36)
Painted Primer Grey or Galvanized
![](https://www.umcmarine.com/wp-content/uploads/MigCat/UMC-430-18.jpg)
![](https://www.umcmarine.com/wp-content/uploads/MigCat/UMC-430-18S-AllSides.jpg)

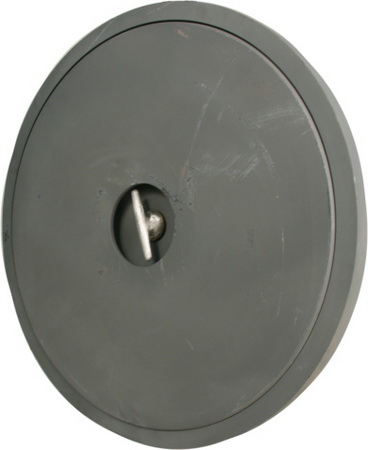

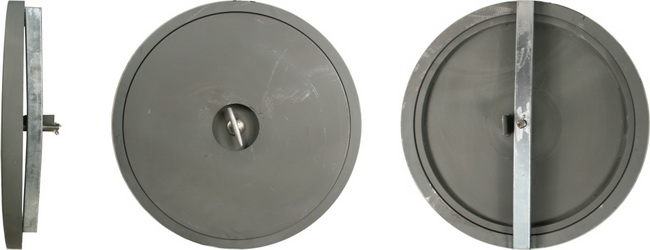

Model: UMC-430-18

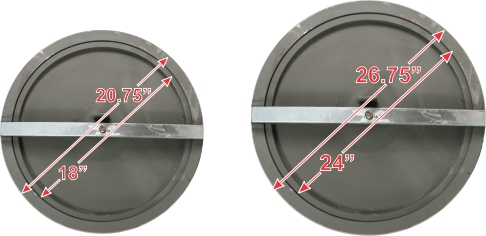

Model Number | Part Number | Description | Clear Opening In. (mm) | Weight Total Lbs (Kgs.) | Cutout Dimension in. (mm) |
---|---|---|---|---|---|
UMC-430-18 | 01210-101A | Flush 18″ T-Bolt Hatch | 18″ (457) |
81 (37) | 20.75″ (527) |
UMC-430-24 | 01220-101A | Flush 24″ T-Bolt Hatch | 24″ (508) |
120 (54) |
26.75″ (679) |
UMC-430-18-GAL | 01210-101B | Flush 18″ T-Bolt Hatch (Galvanized) | 18″ (457) |
81 (37) |
20.75″ (527) |
UMC-430-18-SS | 01210-101S | Flush 18″ T-Bolt Hatch (Stainless Steel) | 18″ (457) |
81 (37) |
20.75″ (527) |
