Kevels | 36″, 42″, 48″ | Cast Steel

Call 1-800-455-3917 for pricing

SKU: UMC-48A, UMC-36A, UMC-159A Category:


PDF Downloads

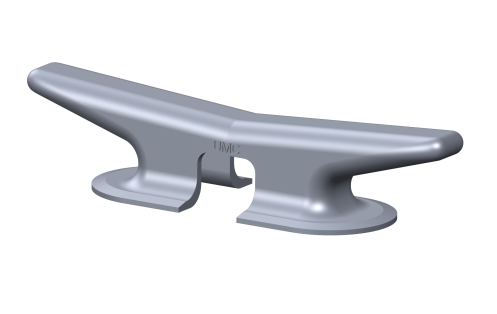

UMC® offers a wide range of Kevels for any deck application. Sizes range from 12” long weighing 8lbs to 60” long weighing just under 400lbs. Our Kevels are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Kevels are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Large Kevels like the UMC-48A, 36A and 159A are designed primarily to be used with line or wire for barge coupling, checking, or mooring. They are typically placed along the gunnels of a barge or work-boat.
ASTM A27-70-36 Cast Steel
Model Number Part Number Description Weight Total Lbs (Kgs.) Autocad PDF/DXF/XML
UMC-48A 01050-301A 36″ Kevel 81 (37)
UMC-36A 01060-301A 42″ Kevel 114 (52)
UMC-159A 01070-301A 48″ Kevel 175 (79)
