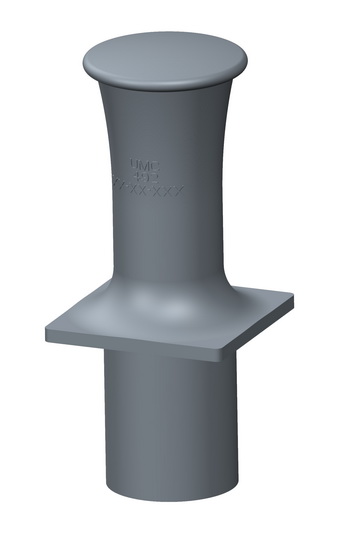

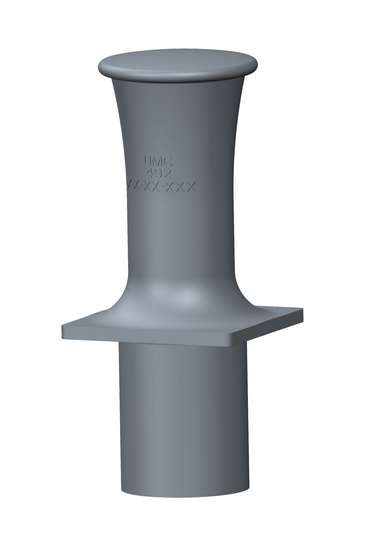

Single Bitts Thru Deck | 8″ | Square Base | Cast Steel

Call 1-800-455-3917 for pricing

SKU: UMC-425, UMC-492 Category:

Description

Description
UMC offers a wide range of Single Bitts for any deck application. Sizes range from a minimum bollard diameter of 8” up to a bollard diameter of 12”. Our Single Bitts are made from ASTM A27 cast steel and are built to withstand the toughest conditions. Models are available with Horns as well as in Thru-Deck and Flush Weld styles. Also available are Heavy Duty Models with thicker side walls.
Feature Description
UMC’s Single Bitts are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Single Bitts are designed primarily to be used with line or wire for barge coupling, checking, or mooring. UMC’s Thru Deck Single Bitts are the perfect solution for towing applications where more rigidity is needed to prevent the deck fitting from tearing off the deck under extreme load situations.
Material
ASTM A27-70-36 Cast Steel

Model Number Part Number Description Bollard Diameter in. (mm) Weight Total Lbs (Kgs.)
UMC-492 03720-301A 8″ Square Base Thru-Deck Single Bitt (Heavy Duty) 8 (203) 370 (168)
UMC-425 03750-301A 8″ Square Base Thru-Deck Single Bitt 8 (203) 288 (131)
