Weathertight Door – 4 Dog Style

Call 1-800-455-3917 for pricing

SKU: UMC-WTD-4D Category:

Description

PDF Downloads

Description

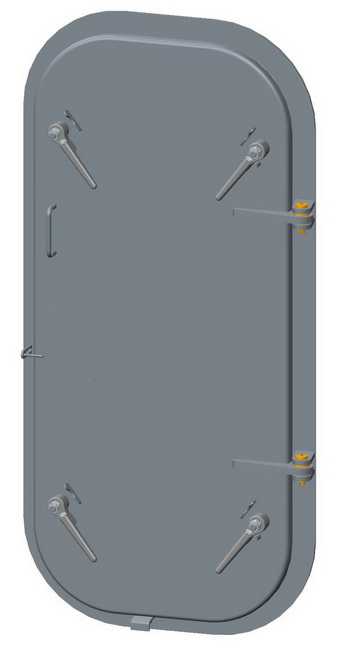

4 Dog Weathertight doors are perfect for easy access to any compartment on your vessel above the waterline. Our doors are fabricated from high quality ¼” steel plate and feature 4 dogs. They are built to provide continuous trouble-free use. Various standard sizes are available in both right and left hand orientation.

Feature Description
Opening orientation can be determined by standing on the outside of the compartment with the door swinging toward you. Right-handed doors will have the hinges on the right from this perspective. Conversely, a left-handed door will have the hinges on the left.

When Ordering Please Specify:
Clear Opening – 26″ x 54″ / 26″ x 60″ / 30″ x 60″
Opening Orientation – Left Hand Door / Right Hand Door

Application
Weathertight Doors are commonly found on exterior and interior bulkheads of any vessel.
Material
Steel (ASTM A36)
Painted Primer Grey
Model Number Description Part Number Handeling Clear Opening In. (mm) Autocad PDF/DXF/XML Weight Total Lbs (Kgs.)
UMC-WTD-4D-26×54-R 26″ x 54″ Opening / Right Handed 06111-101A RH 26″ x 54″ (660 X 1372) 200 (122)
UMC-WTD-4D-26×54-L 26″ x 54″ Opening / Left Handed 06111-101B LH 26″ x 54″ (660 X 1372) 200 (122)
UMC-WTD-4D-26×60-R 26″ x 60″ Opening / Right Handed 06111-101C RH 26″ x 60″ (660 X 1524) 220 (131)
UMC-WTD-4D-26×60-L 26″ x 60″ Opening / Left Handed 06111-101D LH 26″ x 60″ (660 X 1524) 220 (131)
UMC-WTD-4D-30×60-R 30″ x 60″ Opening / Right Handed 06111-101E RH 30″ x 60″ (726 X 1524) 250 (143)
UMC-WTD-4D-30×60-L 30″ x 60″ Opening / Left Handed 06111-101F LH 30″ x 60″ (726 X 1524) 250 (143)
