Weathertight Door – 6 dog Style

Call 1-800-455-3917 for pricing

SKU: UMC-WTD-6D Category:

Description

PDF Downloads

Description
6 Dog Weathertight doors are perfect for easy access to any compartment on your vessel above the waterline. Our doors are fabricated from high quality ¼” steel plate and built to ABS and Lloyd’s Specifications. These doors feature 6 dogs and are built to provide continuous trouble-free use. Various standard sizes are available in both right and left hand orientation.

Feature Description
Opening orientation can be determined by standing on the outside of the compartment with the door swinging toward you. Right-hand doors will have the hinges on the right from this perspective. Conversely, a left-hand door will have the hinges on the left.

When Ordering Please Specify:
Clear Opening – 26″ x 60″ / 30″ x 60″ / 30″ x 66″ / 30″ x 72″
Opening Orientation – Left Hand Door / Right Hand Door

Application
Weathertight Doors are commonly found on exterior and interior bulkheads of any vessel.
Material
Steel (ASTM A36)
Painted Primer Grey

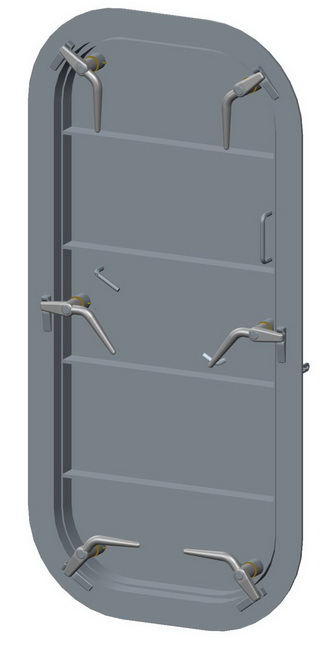

UMC-WTD-6D-26×60-R (Back)
Model Number Description Part Number Handeling Clear Opening In. (mm) Autocad PDF/DXF/XML Weight Total Lbs (Kgs.)
UMC-WTD-6D-26×60-R 26″ x 60″ Opening / Right Handed 06121-101C RH 26″ x 60″ (660 x 1524) Download PDF
Download DXF
270 (122.5)
UMC-WTD-6D-26×60-L 26″ x 60″ Opening / Left Handed 06121-101D LH 26″ x 60″ (660 x 1524) Download PDF
Download DXF
270 (122.5)
UMC-WTD-6D-30×60-R 30″ x 60″ Opening / Right Handed 06121-101E RH 30″ x 60″ (762 x 1524) Download PDF
Download DXF
300 (136)
UMC-WTD-6D-30×60-L 30″ x 60″ Opening / Left Handed 06121-101F LH 30″ x 60″ (762 x 1524) Download PDF
Download DXF
300 (136)
UMC-WTD-6D-30×66-R 30″ x 66″ Opening / Right Handed 06121-101G RH 30″ x 66″ (762 x 1676) Download PDF
Download DXF
330 (150)
UMC-WTD-6D-30×66-L 30″ x 66″ Opening / Left Handed 06121-101H LH 30″ x 66″ (762 x 1676) Download PDF
Download DXF
330 (150)
UMC-WTD-6D-30×72-R 30″ X 72″ Opening / Right Handed 06121-101I RH 30″ x 72″ (762 x 1829) Download PDF
Download DXF
350 (159)
UMC-WTD-6D-30×72-L 30″ X 72″ Opening / Left Handed 06121-101J LH 30″ x 72″ (762 x 1829) Download PDF
Download DXF
350 (159)
