Weathertight Door – Quick Acting Style

Call 1-800-455-3917 for pricing

SKU: UMC-WTD-QA Category:

Description

PDF Downloads

Description
Quick Acting Weathertight doors are perfect for quick and easy access to any compartment on your vessel above the waterline. Our doors are fabricated from high quality ¼” steel plate and built to ABS and Lloyd’s Specifications. These doors feature 6 dogs and are built to provide continuous trouble-free use. Various standard sizes are available in both right and left hand orientation.

Feature Description
Opening orientation can be determined by standing on the outside of the compartment with the door swinging toward you. Right-hand doors will have the hinges on the right from this perspective. Conversely, a left-hand door will have the hinges on the left.

When Ordering Please Specify:
Clear Opening – 26″ x 60″ / 30″ x 60″ / 30″ x 66″ / 30″ x 72″
Opening Orientation – Left Hand Door / Right Hand Door

Application
Weathertight Doors are commonly found on exterior and interior bulkheads of any vessel.
Material
Steel (ASTM A36)
Painted Primer Grey

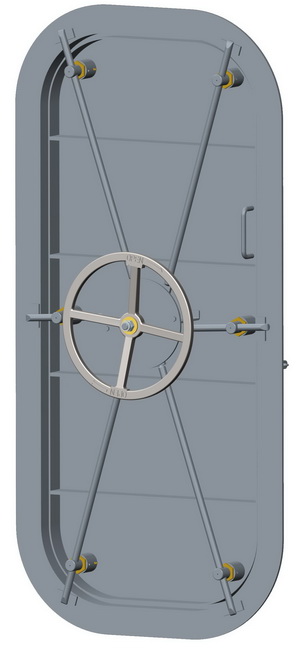

UMC-WTD-QA-26×60-R (Back)

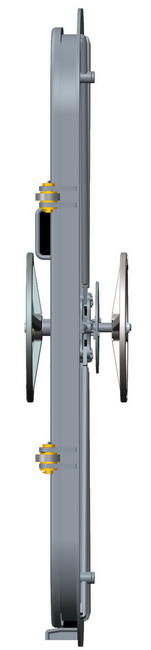

UMC-WTD-QA-26×60-R (Side)
Model Number Description Part Number Handeling Autocad PDF/DXF/XML Clear Opening In. (mm) Weight Total Lbs (Kgs.)
UMC-WTD-QA-26×60-R 26″ x 60″ Opening / Right Handed 06122-101C RH Download PDF
Download DXF
26″ x 60″ (660 x 1524) 320 (145)
UMC-WTD-QA-26×60-L 26″ x 60″ Opening / Left Handed 06122-101D LH Download PDF
Download DXF
26″ x 60″ (660 x 1524) 320 (145)
UMC-WTD-QA-30×60-R 30″ x 60″ Opening / Right Handed 06122-101E RH Download PDF
Download DXF
30″ x 60″ (762 x 1524) 350 (159)
UMC-WTD-QA-30×60-L 30″ x 60″ Opening / Left Handed 06122-101F LH Download PDF
Download DXF
30″ x 60″ (762 x 1524) 350 (159)
UMC-WTD-QA-30×66-R 30″ x 66″ Opening / Right Handed 06122-101G RH Download PDF
Download DXF
30″ x 66″ (762 x 1676) 385 (175)
UMC-WTD-QA-30×66-L 30″ x 66″ Opening / Left Handed 06122-101H LH Download PDF
Download DXF
30″ x 66″ (762 x 1676) 385 (175)
UMC-WTD-QA-30×72-R 30″ x 72″ Opening / Right Handed 06122-101I RH Download PDF
Download DXF
30″ x 72″ (762 x 1829) 410 (186)
UMC-WTD-QA-30×72-L 30″ x 72″ Opening / Left Handed 06122-101J LH Download PDF
Download DXF
30″ x 72″ (762 x 1829) 410 (186)
