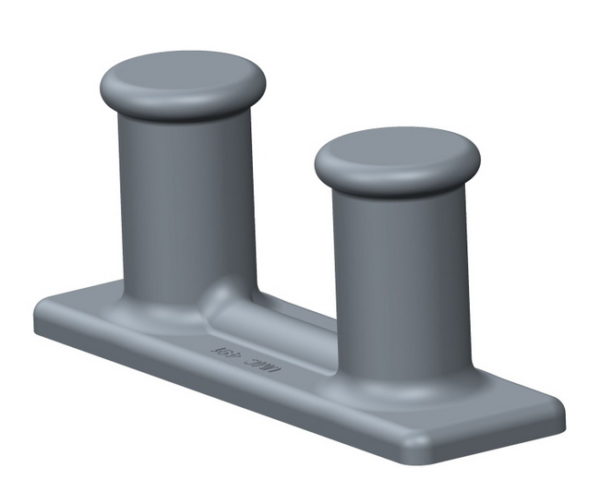

Double Bitts | 12″, 14″ | Cast Steel

Call 1-800-455-3917 for pricing

SKU: UMC-491, UMC-DB14 Category:

Description

Description
UMC offers a wide range of Double Bitts for any deck application. Sizes range from a minimum bollard diameter of 6” weighing 150lbs up to a bollard diameter of 14” weighing nearly 1600lbs. Our Double Bitts are made from ASTM A27 cast steel and are built to withstand the toughest conditions. Our 8″,10”, and 12″ models are also available with horns.
Feature Description
UMC’s Double Bitts are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Double Bitts are designed primarily to be used with line or wire for barge coupling, checking, or mooring. They are typically placed at the starboard and port corners of the bow and stern of a barge and along the gunnels of a push-boat/ tow-boat.
Material
ASTM A27-70-36 Cast Steel
Model Number Part Number Description Bollard Diameter in. (mm) Weight Total Lbs (Kgs.) Autocad PDF/DXF/XML
UMC-491 05970-301A 12″ Double Bitt 12 (305) 1045 (474)
UMC-DB14 01121-301A 14″ Double Bitt 14 (356) 1596 (724)
UMC-491A 05971-301A 12″ Double Bitt w/ Horns 12 (305) 1050 (476)
