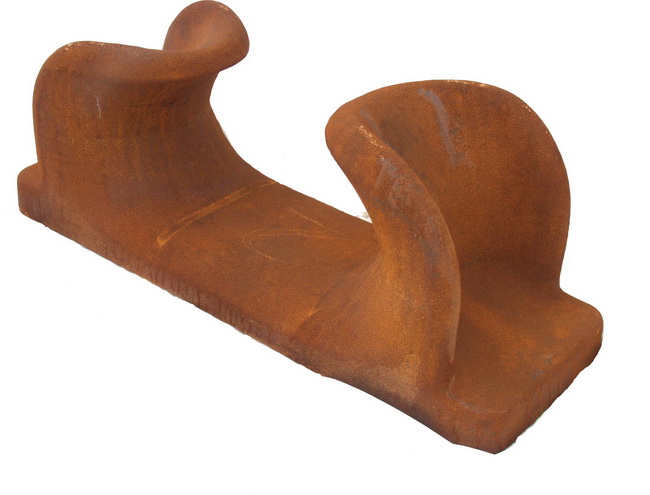

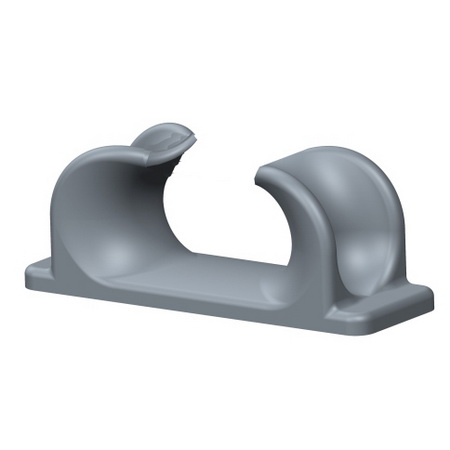

Open Chocks | 9″, 12″ | Cast Steel

Call 1-800-455-3917 for pricing

SKU: UMC-485, UMC-489 Category:

Description

Description
UMC offers several Open Chocks for any deck application. Our Open Chocks are available in two sizes, a 12″ and 16″ wide clear opening. All of UMC’s Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
UMC’s Open Chocks are sold as cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Open Chocks are primarily designed for guiding line or wire onto or around another deck fitting.
Material
ASTM A27-70-36 Cast Steel

Model Number Part Number Description Weight Total Lbs (Kgs.) Autocad PDF/DXF/XML
UMC-485 07870-301A 9″ Open Chock 176 (80)
UMC-489 06242-301A 12″ Open Chock 435 (197)
